Générateur diesel de conteneur

Synchronization panels serve a critical role in addressing power system needs, functioning both manually and automatically to synchronize two or more generators or breakers. These panels are extensively employed in aligning generators and providing versatile solutions. Our top-tier DG synchronizing panels, capable of accommodating connected generators up to 6300 A.

Yacht marine generators represent the pinnacle of excellence for professional sailing and boating enthusiasts. Compact, lightweight, and exceptionally quiet, our generators are engineered to deliver unparalleled performance on the open water. Encased within a sound-insulated capsule, they effectively shield against operational noise and vibration, ensuring a serene onboard environment. With seamless installation, our generators operate virtually unnoticed, allowing you to fully enjoy your yachting experience in peace and tranquility.   Standard Configuration √ Water Cooling Exhaust Pipe and Smoke Water Mixer √ Local Contoller and 20M Remote Controller √ 12V Electrical System √ With Heat Exchanger and Rubber Impeller Sea Water Pump

SDEC is one of the biggest engine manufacturing enterprises in China, established in 1947, their engine renowned for its reliability, durability, and high performance. They are designed to deliver efficient power solutions across various applications, from industrial to commercial settings. Power range from 8kW to 1000kW

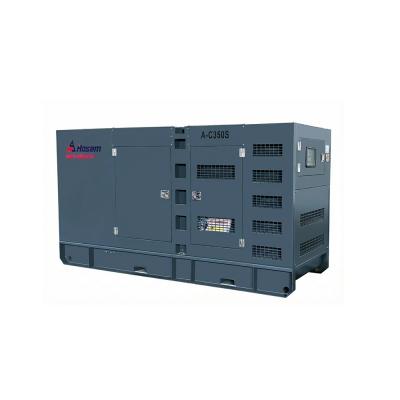

The 250kW Diesel Generator Sets. Powered by Chinese top brand -- SDEC, the engine adopt Bosch fuel injection system, WOODWARD's gas system, innovation based on the Mercedes-Benz DD13   The complete generator delivers a powerful performance with world class, design for 250kW prime power, and 275kW standby power, with the excellent cost-effective, it is the best optimal for your power supply without interruption

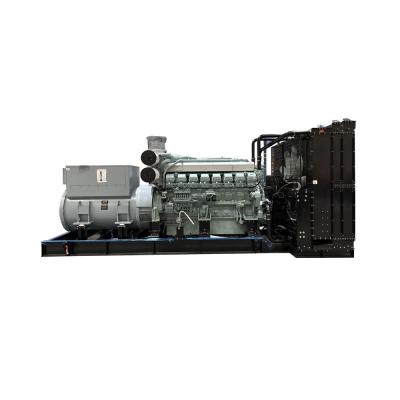

The 6.3kV 2000kVA Diesel Generator powered by Well-known brand Mitsubishi with engine model S16R-PTAA2-C, High-displacement, high-effenciency, ideal for the application of data center, building backup power, manufacuring etc, contact us right now to acquire the factory direct sale price

Model GFW11-200AB(E) GFW11-220AB(E) GFW11-250AB(E) GFW11-200AGB(E) GFW11-220AGB(E) GFW11-250AGB(E) Rated Welding Current(A) 200 220 250 200 220 250 Welding voltage(DC)(v) 24-30 24-30 24-32 24-30 24-30 24-32 Welding current range(A) 50-200 50-220 50-250 50-200 50-220 50-250 Applicable ElectrodeΦ(mm) 2.5-4.0 2.5-4.0 2.5-5.0 2.5-4.0 2.5-4.0 2.5-5.0 Duty Cycle  0.6 0.6 0.6 0.6 0.6 0.6 Phase  Single phase/Three phase AC Frequency(Hz) 50 / 60Hz 50 / 60Hz 50 / 60Hz 50 / 60Hz 50 / 60Hz 50 / 60Hz Rated AC Output (KW) 5.0/6.0 6.0/7.0 7.0/7.5 5.0/6.0 6.0/7.0 7.0/7.5 Rated AC Output Voltage(V) 110；120；110/220；120/240；220；230；240；220/380；230/400 Engine Model  GF190F(E) GF192F(E) GF192FB GF190F(E) GF192F(E) GF192FB Max. Outpput (HP) 15 17 18 15 17 18 Displacement (cc) 420 440 460 420 440 460 Type  Single-cylinder,4-stroke,Air cooled,OHV Compression ratio  8.3：1 Starting System  Recoil/Electric           Lubrication Systerm Forced Lubrication           Fuel Tank  (L) 6.5 6.5 6.5 11 11 11 Oil Capacity  (L) 1.1 1.1 1.2 1.1 1.1 1.2 Noise Level (Db/7m) 66 66 70 66 66 70 Packing Dimensions(mm) 810X545X560 810X545X560 810X545X560 810X545X560 810X545X560 810X545X560 Gross Weight(kg) 90 93 107 93 96 110

Assemblage par Ricardo tout nouveau moteur et tout nouvel alternateur à palier unique avec IP23, classe H. Options alternateur Marques : Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Acier robuste comme plaque de base avec réservoir de carburant de 8 heures de fonctionnement. Le niveau de bruit extrêmement faible, la verrière est en tôle laminée à froid de 2 mm, remplie de coton silencieux ignifuge de 3 cm d'épaisseur, groupe électrogène complet avec silencieux de type industriel robuste avec soufflet flexible et coude. Amortisseur de vibrations entre moteur/alternateur et châssis de base Disjoncteur tripolaire. Marques de contrôleurs d'options : UK Deepsea, Czech ComAp, CN Smartgen, etc. Fonction de protection complète et fonction d'arrêt d'alarme Conformez-vous à la norme nationale ISO8528 et à la norme de qualité ISO9001.

Quanchai is a Chinese state-owner enterprise, its history of producing diesel engines can be early strike to 1949, with several decades develop, now Weichai has more than 3000 employees and it has been awarded as the national high-technology enterprise, national technology innovation enterprise, and the national intellectual property enterprise.   Discover reliable and robust power solutions with our Quanchai diesel generator sets.    Engineered to deliver unwavering performance, Quanchai generators are the epitome of efficiency, durability, and power. Equipped with Quanchai's cutting-edge diesel engine technology, these generators ensure consistent power supply in varied environments
